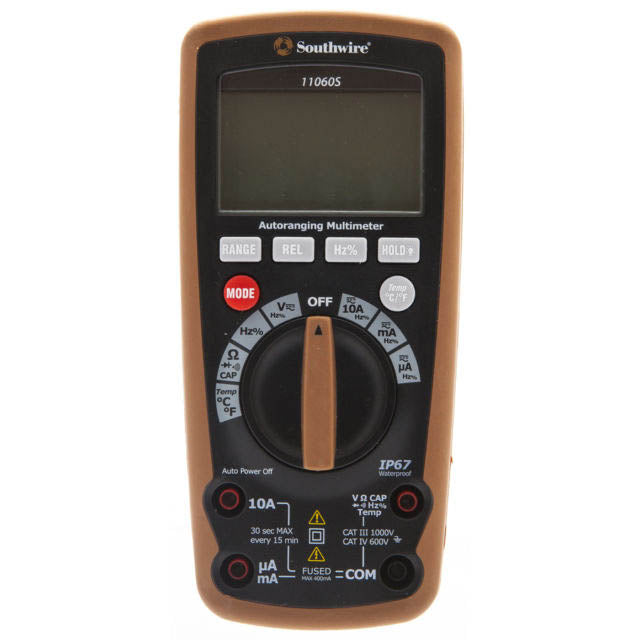

11060S - MULTIMETER DIGITAL AUTO 10A IP67 RATING AMP/RES/CAP/FREQ/TEMP/CON

  • Sale
  • Regular price $49.95 CAD

In stock.
To purchase bulk quantities, Please contact our Sales Department (+1-416-494-8999) or email shop@sayal.com


MFR. No. : 11060S
STOCK No. : MJRD-445A

Auto-Ranging Multimeter IP67 CAT IV

Rugged industrial grade multimeter offers 1000 volt input protection
IP67 waterproof and dust proof housing and a CAT IV safety rating.

Features:
  • 11 Functions including: Capacitance Frequency Duty Cycle and Temperature
  • IP67 Dust Proof and Waterproof for demanding environments
  • Easy to read backlit 4 000-count display
  • Magnetic hanging strap for convenient hands free operation
  • CAT IV 600V CAT III 1 000V UL Listed
Includes:
  • 10060S Multimeter
  • Test leads
  • Type K temperature probe with banana plug adapter
  • Magnetic hanging strap
  • Carrying case
  • 9 volt battery

Feature   Range   Max. Resolution   Max. Accuracy (% of Reading)
AC Voltage   1000V   0.1mV   ±1.0%
DC Voltage   1000V   0.1mV   ±0.5%
AC Current   10A   0.1µA   ±1.2%
DC Current   10A   0.1µA   ±1.0%
Resistance   40MΩ   0.1 ohm   ±0.8%
Capacitance   100µF   10pF   ±3.0%
Frequency   5MHz   0.001Hz   ±1.0%
Duty Cycle   99.9%   0.1%   ±1.2%
Temperature   -4 to 1400°F (-20 to 760°C)   0.1°   ±3.0%
Continuity   Audible threshold approx. 30 ohms
Diode Test   Yes
Dimensions   6.7 x 3.11 x 1.97 in.
Weight   1.16lb
