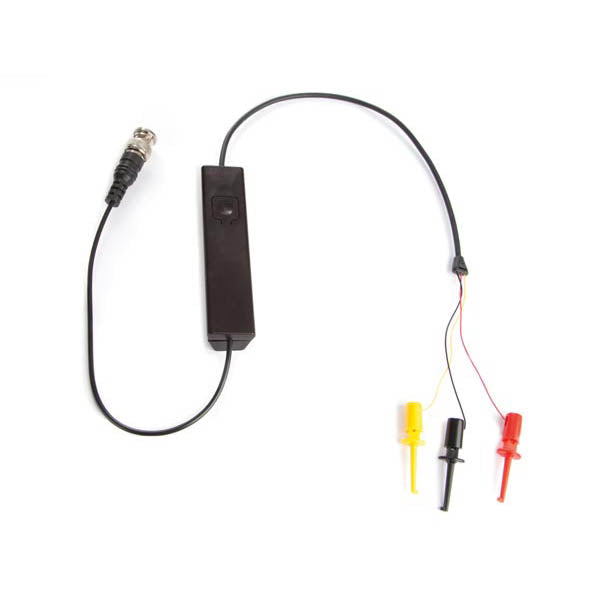

COMPONENT TEST OPTION FOR HANDHELD OSCILLOSCOPE

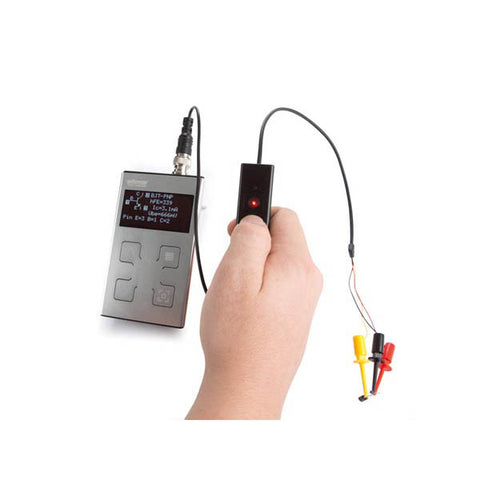

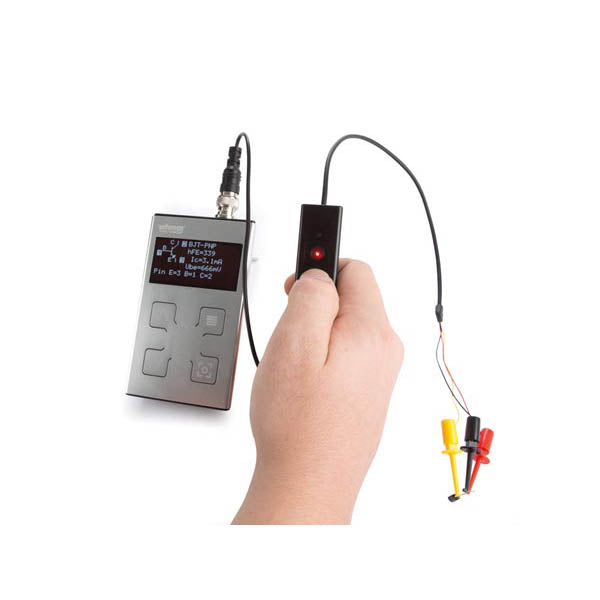

Connect this easy to use component tester to your handheld oscilloscope (HPS140MK2) and receive all useful information about resistors transistors diodes and more including their pin out identification.
Note: Only compatible with the handheld oscilloscope HPS140mk2 (not included)
Features:
- a single button test
- a test indicator
- auto shutdown

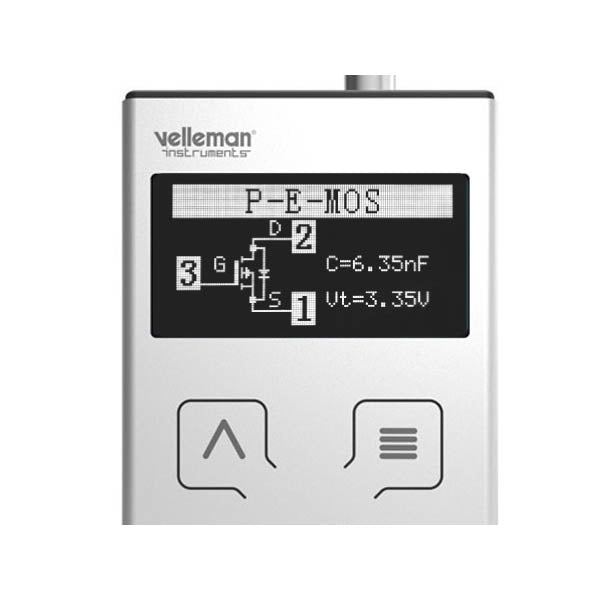

- shows pin layout
- handheld oscilloscope (HPS140mk2) needed (not included)
- battery included
- component analyzer with automatic pin out identification
- dimensions: 23 x 96 x 15mm (W x L x H) (without cables)
- supported components: SCR JFET EIGBT DIGBT EMOS DMOS resistor coil capacitor diode transistor
- resistance resolution: 0.1Ohm (max 50 Ohm)
- capacitance range: 28pF to 100.000µF
- inductance range: 0.01mH to 20H
- standby current: 20nA

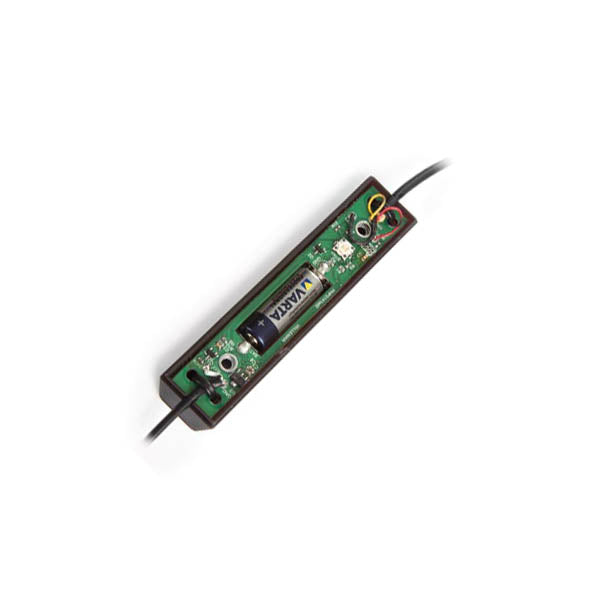

- power supply: 12V battery GP23A (included)
- test current: approx. 20mA
- test speed: 2 seconds
