PSC-4136 - PSU SW 1-36VDC@0.25-3A BENCHTOP 3.3/5V@1.8A 12V@0.8A DIGITAL

  • Sale
  • Regular price $389.95 CAD

Only 4 In-Stock Remaining.

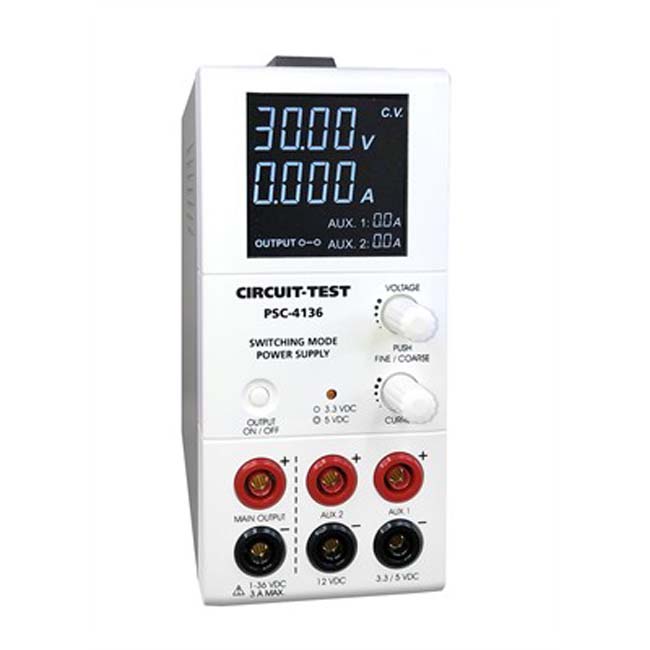

PSC4136 is a 100W Switching Mode Power Supply with current limiting control featuring three fully isolated outputs which can be used independently simultaneously or in combination. The variable output is also remotely programmable with the USB interface.
Features:
  • Variable Output: 136VDC / 0.253A
  • Fixed Output: 3.3 or 5VDC (selectable) / 1.8A 12VDC / 0.8A
  • Constant Voltage or Constant Current with automatic crossover
  • Fully isolated outputs

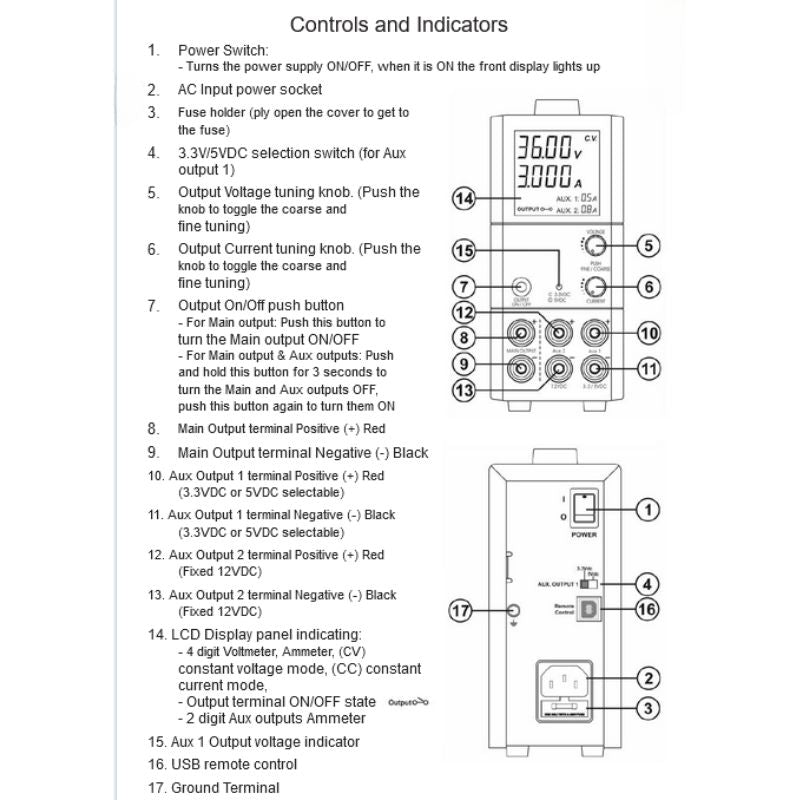

  • Output OnOff switch on front panel

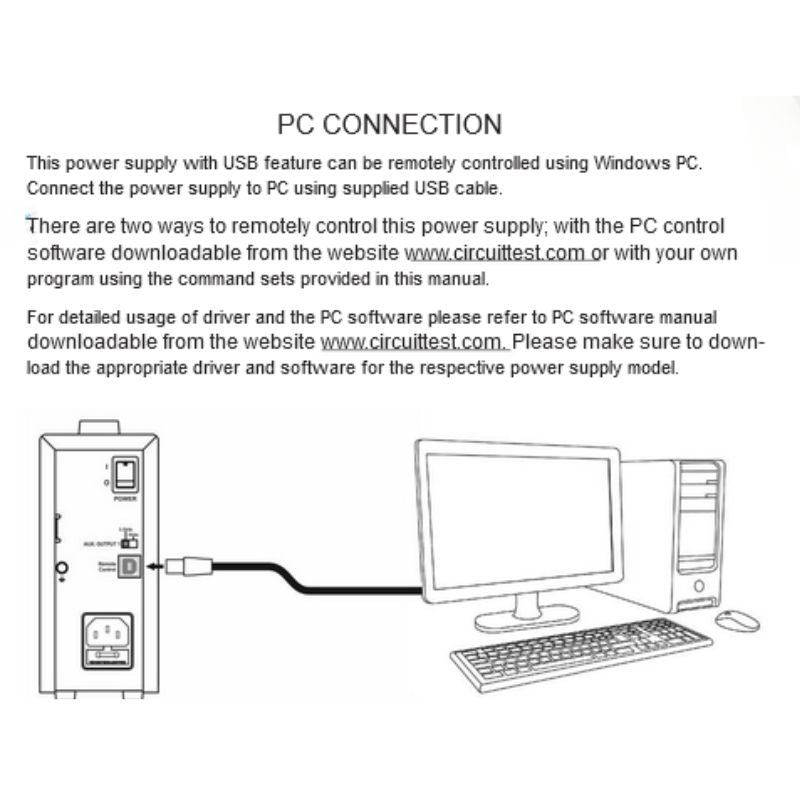

  • USB port to interface with computer
  • Rotary encoder for easy tuning of voltage and current
  • 4Digit LCD Voltage and Current displays
  • Tracking OVP (output over voltage protection)
  • Natural convection
